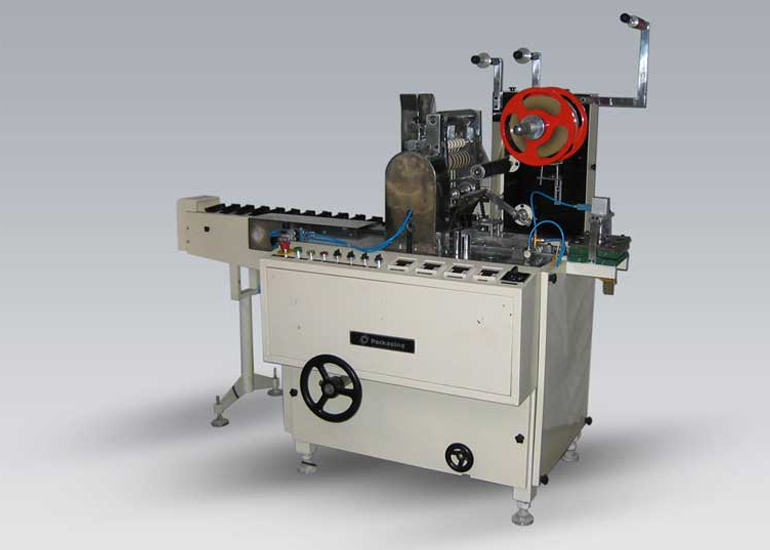

Carton Overwrapping Machines

Carton

Features & Advantages:

  • 1. Suitable for loose playing cards & Boxes
  • 2. Conveyer provided with Pockets for easy loading of loose cards & transfer to wrapping station.
  • 3. Tear tape arrangement for smooth tearing of wrapper (optional).
  • 4. Various sizes of cartons can be accommodated in the same machine with minimum number of change parts ( flexibility in design can be taken at the time of designing).
  • 5. Speeds up to 30 packs/min

Technical Specification:

  • 1. Total Power: 2.5 kW
  • 2. Speed: Up To 30 pack /min. Depending on the size of the cartons/efficiency of the operator
  • 3. Product: Playing Cards cartons, Loose playing cards, glycerin soaps etc
  • 4. Carton Sizes: 70 mm X 70 mm X 7 mm to 140 mm X 120 mm X 25 mm
  • 5. Air Consumption: 4-5 CFM/ 5-6 kg/cm2
  • 6. Dimensions of Machine: 1600 MM (L) (including the conveyor) x 700 MM (W) x 1700 MM (H). approx
